| Range | Digilink |
|---|---|

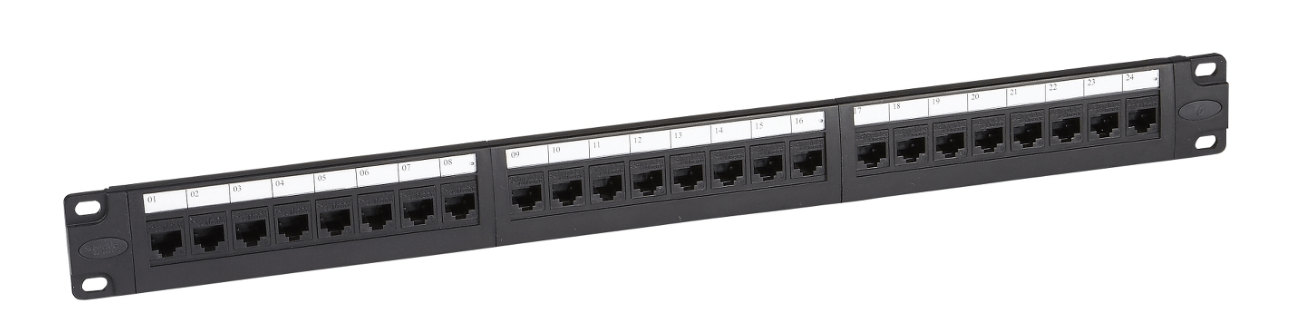

| Product or component type | Patch panel |
| Provided equipment | With RJ45 connectors |
| Communication network category | 6 |
| Accessory / separate part designation | Insulation displacement connector |
| Cable shielding type | UTP |
| Number of port | 24 |
| Connector type | RJ45 |
|---|---|
| Minimum number of matings | 750 cycles |
| [In] rated current | 1.5 A |
| Insulation resistance | >= 500 mOhm at 500 V DC |
| Contact resistance | 20 mOhm |
| Material | Panel: steel powder coated |
| Contacts material | Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| Width | 482.6 mm |
| height | 44.2 mm |
| Number of rack unit | 1U |
| Environmental characteristic | Flame retardant |
|---|---|
| product certifications | UL listed UL/ETL verified |
| standards | ANSI/TIA-568-C.2 ISO/IEC 11801 class E EIA/TIA TSB 40 A |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8 cm |
| Package 1 Width | 10 cm |
| Package 1 Length | 52 cm |
| Package 1 Weight | 800 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 13 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 11.422 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 104 |
| Package 3 Height | 80 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 103.38 kg |
| Warranty | 18 months |
|---|
