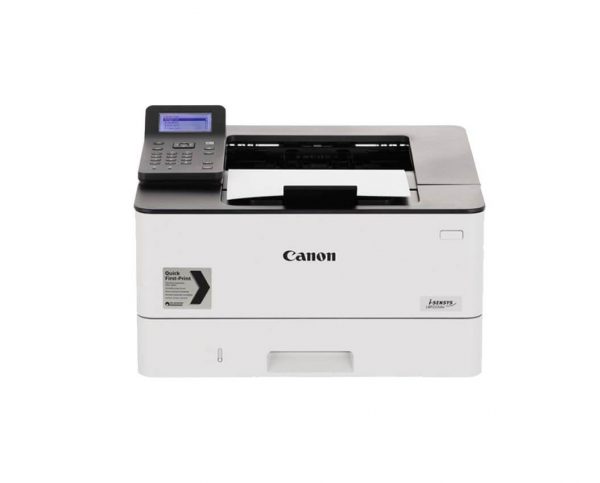

Canon i-SENSYS LBD226dw Printer

Printer Engine

• Print speed

  LBP223dw:

  Single sided: Up to 33 ppm (A4)                     Up to 52.5 ppm(A5-Landscape)

  Double sided: Up to 28.7 ipm (A4)

  LBP226dw/LBP228x^†:

  Single sided : Up to 38 ppm (A4)

  Up to 63.1 ppm(A5-Landscape)

  Double sided : Up to 31.9 ipm (A4)



• Printing method

  Monochrome laser beam printing

• Print Resolution

  600 x 600 dpi

• Print Quality with Image Refinement Technology

  Up to 1200 x 1200 dpi

• Warm-up Time

  Approx. 14 seconds or less from power on

• First Page Out Time

  Approx: 5.5 seconds or less

• Recommended Monthly Print Volume

  750 – 4,000 pages per month

• Duty cycle

  80,000 pages

• Print margins

  5 mm-top, bottom, left and right

• Advanced printing features

  LBP223dw:

  Google Cloud Print Ready
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

  LBP226dw:

  Secure Print
  Google Cloud Print Ready
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

  LBP228x^†:

  Secure Print
  Barcode Print
  Google Cloud Print Ready
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app”



Media Handling

• Paper input (Standard)

  250-sheet cassette
  100-sheet multi-purpose tray

• Paper input (Option)

  550-sheet cassette

• Paper output

  150-sheet

• Media types

  Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Post card, Envelope

• Media sizes

  Cassette (Standard and optional):
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Custom sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.

  Multi-purpose tray:
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Indexcard, Envelope (COM10, Monarch, C5, DL), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.”



• Media weights

  Cassette (standard and optional): 60 to 120 g/m²m
  Multi-purpose tray: 60 to 163 g/m²

• Double Sided Printing

  A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
  Custom size – Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm 60 to 120 g/m2

General features

• Power requirements

  220-240V(±10%) 50/60Hz (±2Hz)

• Power Consumption

  Maximum: Approx. 1,330 W

  Standby: Approx. 9 W

  Sleep mode: Approx. 0.9 W

  Typical Electricity Consumption (TEC):

  LBP223dw: 0.9 kWh/week

  LBP226dw/LBP228x^†: 1.0 kWh/week (230V)

  For detailed information relating to Lot26 regulation, please go to: http://www.canon-europe.com/For_Work/Lot26/index.aspx



• Noise Level

  Sound Pressure:
  Active: 54 dB
  Standby: Inaudible

  Sound Power:
  Active: 68 dB
  Standby: Inaudible3



• Dimensions (W x D x H)

  LBP223dw/LBP226dw:
  401 mm x 373 mm x 250 mm

  LBP228x^†:
  438 mm x 373 mm x 312 mm



• Weight

  LBP223dw/LBP226dw:
  Approx. 9.5 Kg

  LBP228x^†:
  Approx. 9.9 Kg



• Operating Environment

  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity 20 to 80% RH (no condensation)

• Control Panel

  LBP223dw/LBP226dw:
  5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad

  LBP228x^†:
  12.7 cm LCD Colour Touch Screen



Controller

• Processor Speed

  800MHz x 2

• Memory

  1GB

• Printer Languages

  LBP223dw: UFRII, PCL 5e4, PCL6

  LBP226dw: UFRII, PCL 5e4, PCL6, Adobe® PostScript

  LBP228x^†: UFRII, PCL 5e4, PCL6, Adobe® PostScript



• Fonts

  LBP223dw: 45 PCL fonts

  LBP226dw: 45 PCL fonts, 136 PS fonts

  LBP228x^†: 93 PCL fonts, 136 PS fonts



• Interface and connectivity

  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

• Software and printer management

  LBP223dw/LBP226dw:
  Remote User Interface (RUI), Department ID Management, Toner Status Tool, iW Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

  LBP228x^†: Remote User Interface (RUI), Department ID Management, Toner Status Tool, iW Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics. Universal Log-in Manager / uniFLOW online / uniFLOW online Express / uniFLOW compatibility Application Library



• Operating System compatibility

  Windows® 10 / Windows® 8.1 / Windows® 7 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012 / Server® 2008R2 / Server® 2008
  Mac OS X version 10.9.5 & up / Mac OS 10.14
  Linux5

Consumable

• All-in-One cartridges

  Cartridge 057 (3,100 pages) Cartridge 057H (10,000 pages)

Accessories / options

• Items

  LBP223dw/LBP226dw:
  Cassette Feeding Module-AH1

  LBP228x^†:
  Cassette Feeding Module-AH1
  MiCard Multi (Card reader for identification with RFID or magnetic cards with uniFLOW)
  Micard Plus (Card reader for identification with RFID or magnetic cards with uniFLOW)
  MiCard Attachment kit-B1
  Barcode Printing Kit-E1E
